MEASURE, ANALYZE & CONNECT
Optimising or comparing turntable performance? Shaknspin is the most useful and accurate way to do that.
Changes to bearing and motor lubrication (or belt types and tension) can be evaluated. Using a sophisticated 9 degrees-of-freedom sensor, Shaknspin measures the rotational speed of your turntable platter 500 times per second.
The Speed option allows the platter speed to be instantly displayed, enabling you to confirm that everything is working properly. However, the Wow & Flutter analysis is the main purpose.
Indicators are calculated and displayed, and can be stored remotely to use with your smartphone.
Average speed in RPM
Average speed deviation
Max / min speed variation
Max% / min% speed variation
High pass filtered max / min speed variation
W&F DIN
W&F WRMS
W&F peak-to-peak
W&P peak-to-peak 2-sigma
Wow
Flutter
Modulation frequency (primary)
Modulation frequency (secondary)
Jitter (average speed change / second)
MORE INFORMATION?
For technical specifications, visit the SHAKENSKIN WEBSITE.
For orders and other inquiries, give us a call or email/send us a message using the contact form at the bottom of this page.

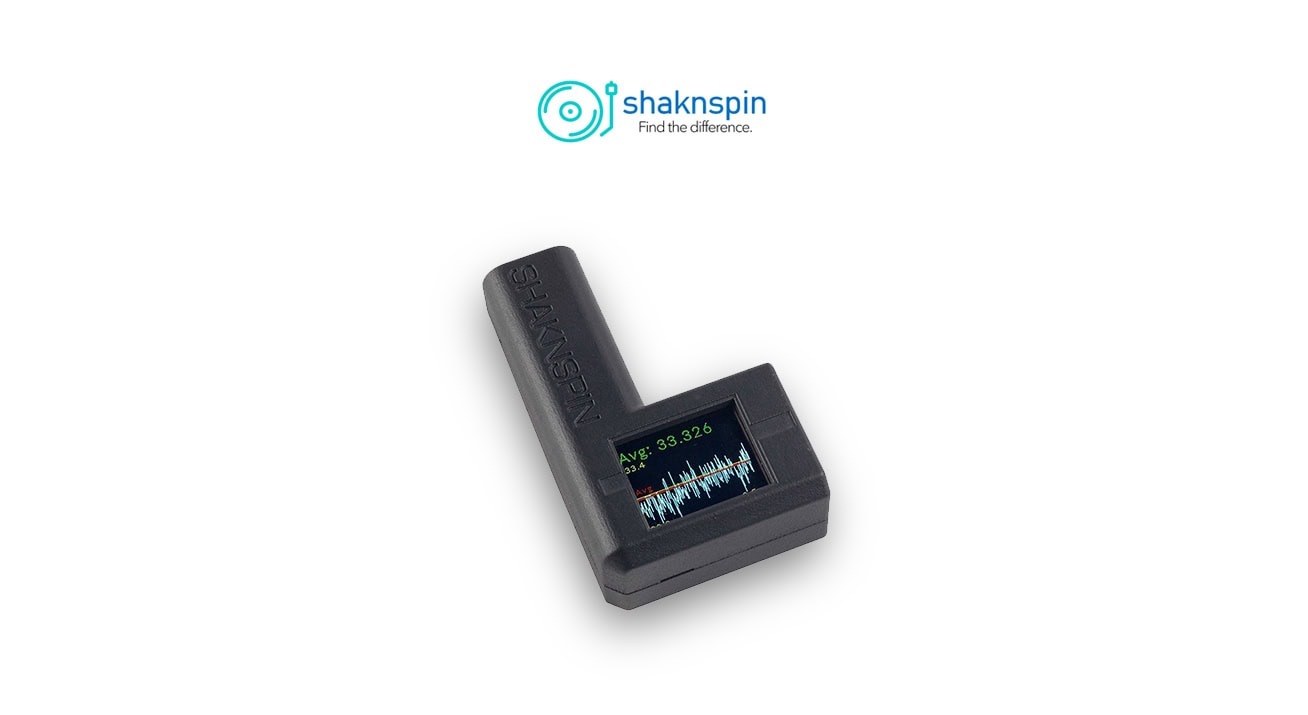

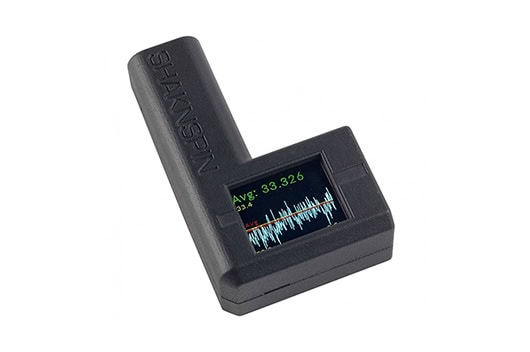

ShaknSpin Turntable Analyser MKII
Advanced Wow & Flutter analyzer
DESCRIPTION
Measure

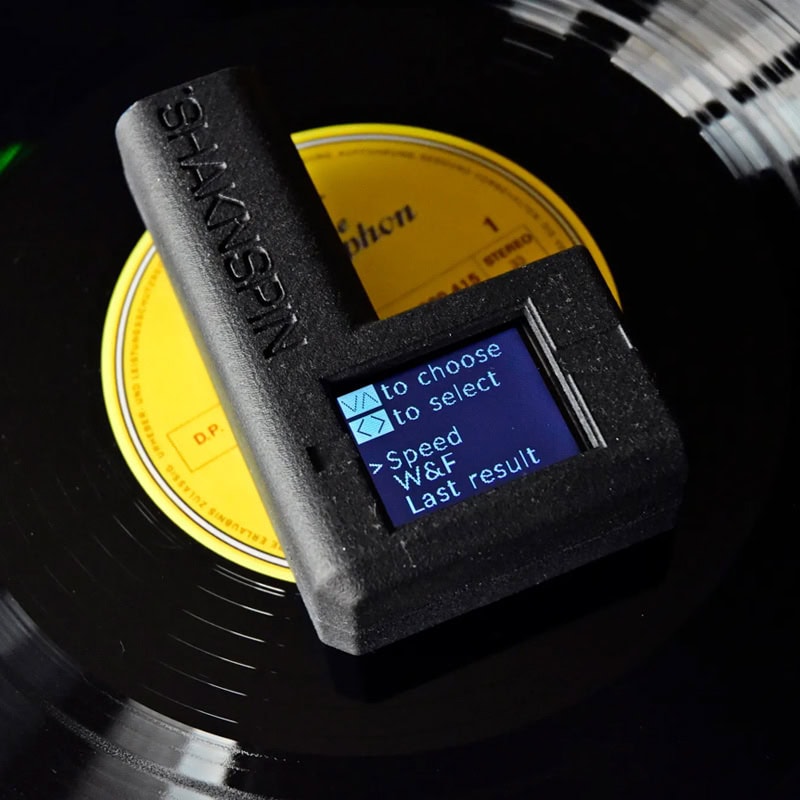

Using a sophisticated 9 degrees-of-freedom sensor, Shaknspin can accurately measure the rotational speed of your turntable platter, 500 times per second.

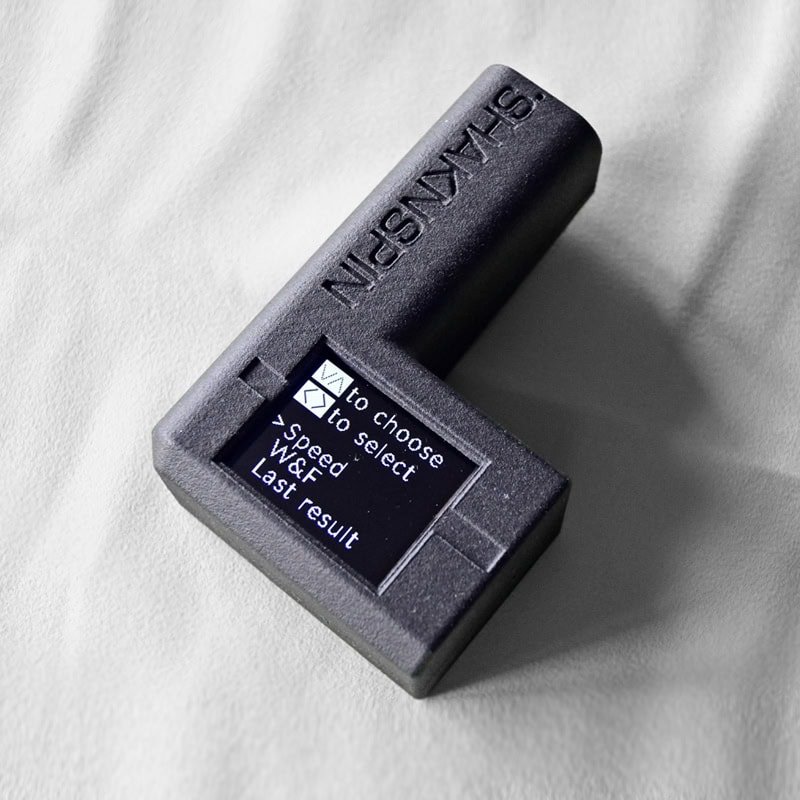

The Speed option allows the platter speed to be continuously displayed, allowing you to confirm that all is well.
Analyze
Wow&Flutter analysis is another method of operation. Following a brief measuring period, the following indicators are calculated and displayed:
Average speed in RPM
Average speed deviation
Max / min speed variation
Max% / min% speed variation
High pass filtered max / min speed variation
W&F DIN
W&F WRMS
W&F peak-to-peak
W&F peak-to-peak 2sigma
Wow
Flutter
W&F (DIN weighted)
Modulation frequency (primary)
Modulation frequency (secondary)
Jitter (average speed change / second)
More information about these indicators can be found here, and the complete User Manual can be downloaded here.
This is very valuable information, allowing you to see the characteristics of the platter rotation in terms of speed stability and giving clues to where any issues might be.
Graphical representations of the speed variation, flutter component and calculated average are also available.
